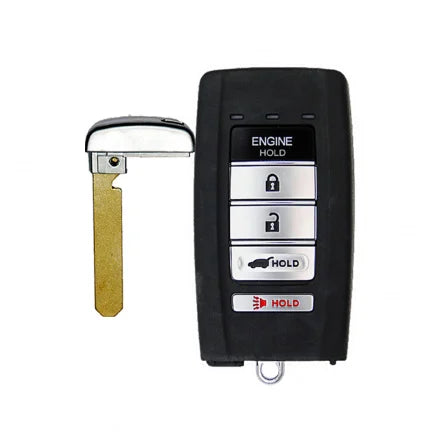

Product Identification
| Vehicle |
Acura RDX |
| Years |
2016–2018 |
| Key Type |
Proximity smart key |
| OEM Part Number |
72147-TX4-A61 |
| Memory Position |
Driver 1 |
| Buttons |
5 — Engine Start, Lock, Unlock, Hatch, Panic |
| Remote Start |
Yes |
| FCC ID |
KR580399900 |
| IC |
7812D-80399900 |
| Frequency |
923–924 MHz |
| Manufacturer |
Continental |
Compatibility
| Make |
Model |
Years |
| Acura |
RDX |
2016–2018 |
Fitment note: Multiple smart-key versions are used according to model year, equipment level, remote-start configuration, and Driver 1/Driver 2 memory position. Verify the original remote and VIN before ordering or programming.
Emergency Key and Cutting Information
| Emergency Key |
Acura 35118-TY2-A00 |
| Keyway / Lishi |
HON66 / HO01 |
| Test Key |
HD001 |
| Code Series |
K001–N718 |
| Key Style |
High-security sidewinder |
Locksmith Guide
Key codes for this HON66 system normally begin with K, L, M, or N. The code series is K001–K999, L001–L999, M001–M999, and N001–N718.
When manually cutting a key, pay special attention to position 5. A master key normally uses depth 5 at this position, while the valet function uses depth 2. The valet cut can control glove-box, rear-seat pass-through, trunk, or trunk lock-out operation when equipped. Positions 1–4 use split tumblers. Position 5 is a solid tumbler with two possible depths, and position 6 is always precut to depth 1.
Correct Depth for Position “A”
| Code Series Range |
Depth for Position “A” |
| K001–K684, L349–M032, M697–N214 |
3 |
| K685–L348, M033–M696, N215–N718 |
5 |
Recommended Ways to Make a Key
-
Decode with HON66 Lishi: Use a HON66 lock reader/decoder.
-
Check available cylinders: Inspect the glove-box, trunk, or valet lock-out cylinder, if equipped, and read the stamped code where available.
-
Door lock method: Remove the door-lock cylinder and read the stamped code, or disassemble the cylinder to determine the cuts.
Locksmith note: Some glove-box covers are sealed, and door-lock access can be time-consuming. Some glove boxes may contain more tumblers than others.
HON66 Lock Decoding Diagrams
