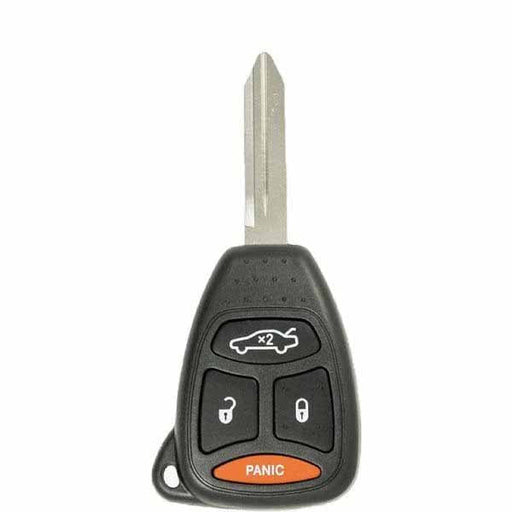

Aftermarket replacement remote head key. Verify the part number, FCC ID, frequency and button layout before programming.
-
FCC ID: OHT692714AA
-
IC: 5461A-692714AA
-
Part number: 68273343AA
-
ILCO reference: RHK-CHRY-4B1
-
Buttons: Lock, Unlock, Trunk, Panic
-
Frequency: 315 MHz
-
Chip: Philips 46
-
Keyway / test key: Y159 / Y157
-
Battery: CR2032
| Make |
Model |
Year Range |
| Chrysler |
PT Cruiser |
2006–2010 |
Locksmith Technical Guide
Key Blade and Cutting Information
-
Key style: Double-sided
-
Code series: M 1–2618
-
Code card: CX102
-
ITL reference: 69
-
MACS: 2
-
Start cut: .310 in
-
Cut-to-cut spacing: .092 in
-
Keyway references: BY165-PT, Y164-PT, Y165-PHT, TP12-CHR15P, Strattec 692352
-
Test key: Y157 / Y159
-
Decoder references: Determinator CHR 2, Lishi CY24, AccuReader CHRY 8, EEZ Reader Y157, Cobra KDC8
-
Ignition retainer: Active
-
Airbags: Yes
Transponder and Programming
-
Transponder: Yes
-
Chip: Philips 46
-
Reusable: No unless properly unlocked
-
PIN: 4-digit PIN required
-
Factory tools: DRB, StarSCAN, MicroPod, wiTECH
-
Compatible tools shown in the guide: TCODE/MVP Pro, Smart Pro, Hotwire, Autel IM608
-
Tools shown as unconfirmed: TDB1000 and Auto Pro Pad
Cloning Information
The Philips 46 transponder can be cloned with supported equipment and the correct chip or shell. The source guide lists Clone Wizard, CN900, RW4, TRS-5000/EVO, 884 Ultegra, Miraclone, Tango and VVDI Mini Tool; some platforms require internet access or a Philips Crypto update.
Making a Key
No usable key code is stamped on the locks. Decode the door lock and progress the remaining ignition cut, use a compatible tryout-key set, or remove and decode a door or trunk cylinder before progressing the remaining ignition cut.
Key Cut Position Usage Chart
